Foundation Equipment
The Foundation of Your Success
Sunward is a world leader in the design and manufacture of foundation equipment. With a strong reputation of quality and reliability, that is backed by GANZ International service commitment, you can be confident you have made the right choice investing in Sunward Foundation Equipment
Our Range of Sunward Foundation Equipment
-
Sunward SWDM40S (17t)
Kelly Locakable to 19m
Engine: Yanmar
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM80S
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM80SC (27t)
27t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSF3.8 T3
Rated Power: 90kW@220rpm
Rotary Head: 800mm Diameter with 80kN Torque
Main Winch: 20mm Rope with 80kN Single Line Pull
Aux Winch: 13mm Rope with 30kN Single Line Pull
-
Sunward SWDM80SW
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SDWM160A (46t)
Descrip46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-

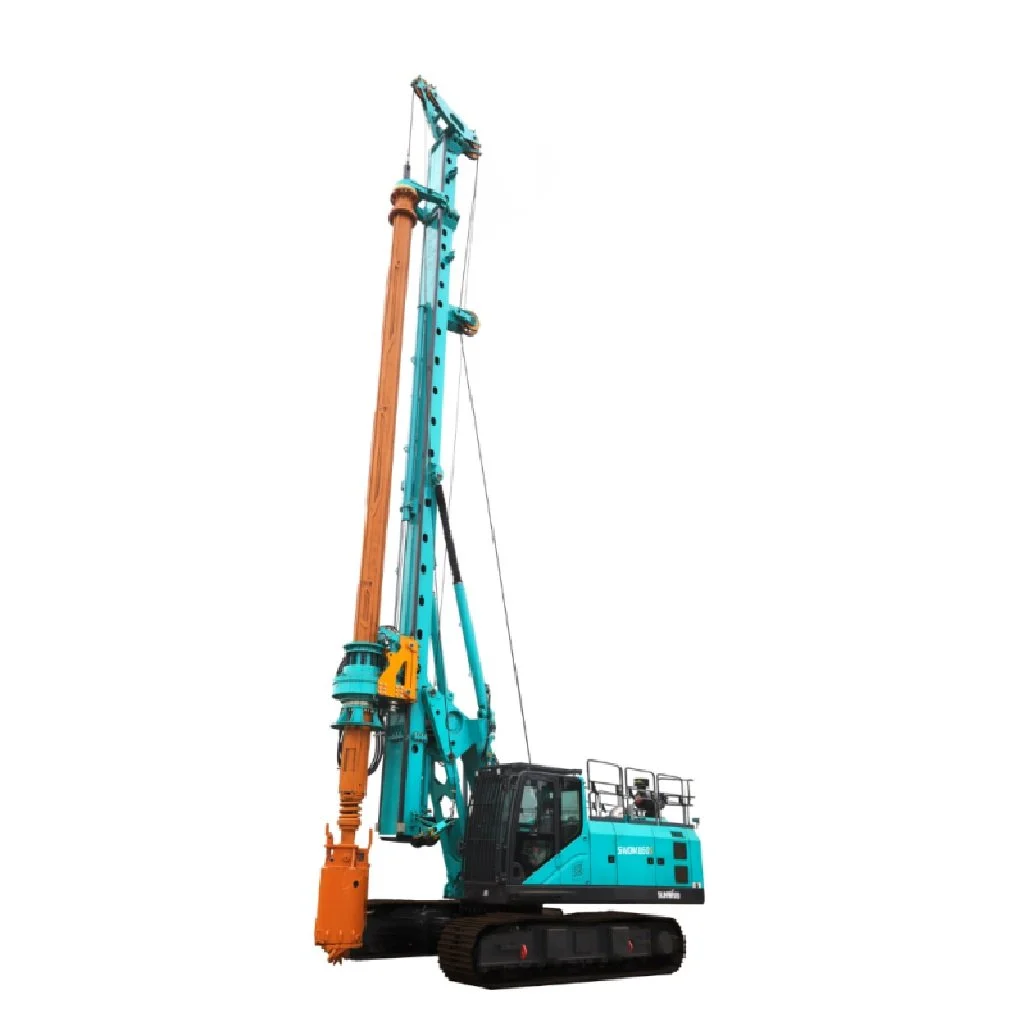

Sunward SWDM160B (46t)
Description goes here46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-

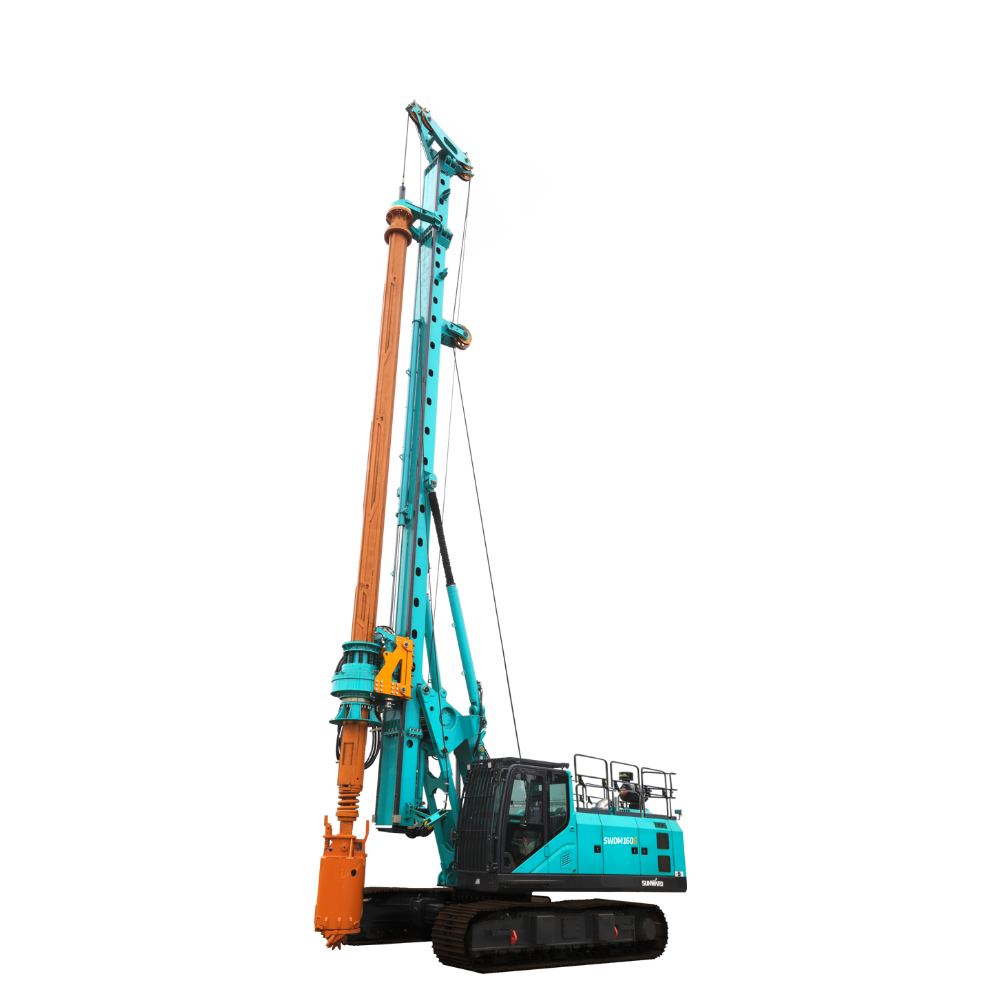

Sunward SWDM160SC (46t)
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSB6.7 T3
Rated Power: 186kW@2000rpm
Rotary Head: 800mm Diameter with 168kN Torque
Main Winch: 28mm Rope with 165kN Single Line Pull
Aux Winch: 16mm Rope with 50kN Single Line Pull
-
Sunward SDWM160H2
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SDWM200
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SDWM220A
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM220B
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM220-3
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-

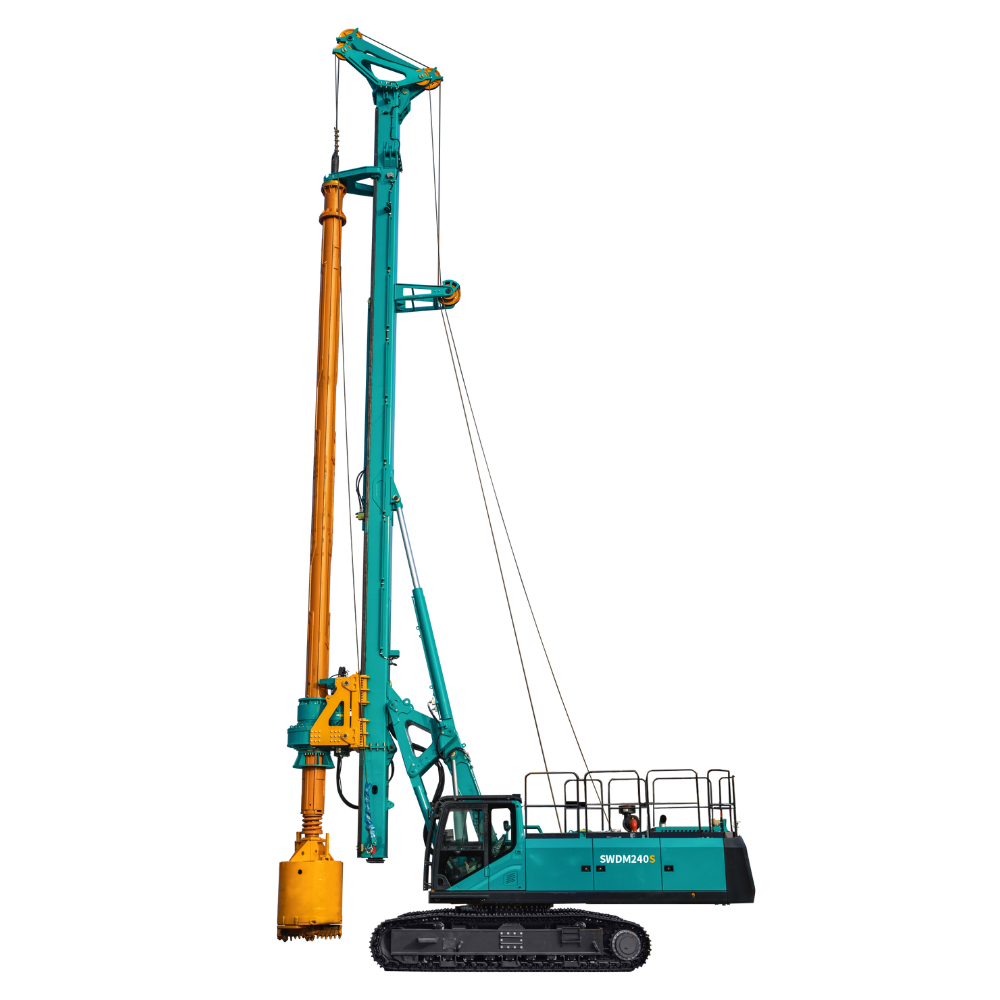

Sunward SWDM240SC (73t)
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM260
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSL9 T3
Rated Power: 252kW@1800rpm
Rotary Head: 1,000mm Diameter with 248kN Torque
Main Winch: 32mm Rope with 280kN Single Line Pull
Aux Winch: 20mm Rope with 80kN Single Line Pull
-
Sunward SWDM300SW (104t)
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSB6.7 T3
Rated Power: 186kW@2000rpm
Rotary Head: 800mm Diameter with 168kN Torque
Main Winch: 28mm Rope with 165kN Single Line Pull
Aux Winch: 16mm Rope with 50kN Single Line Pull
-

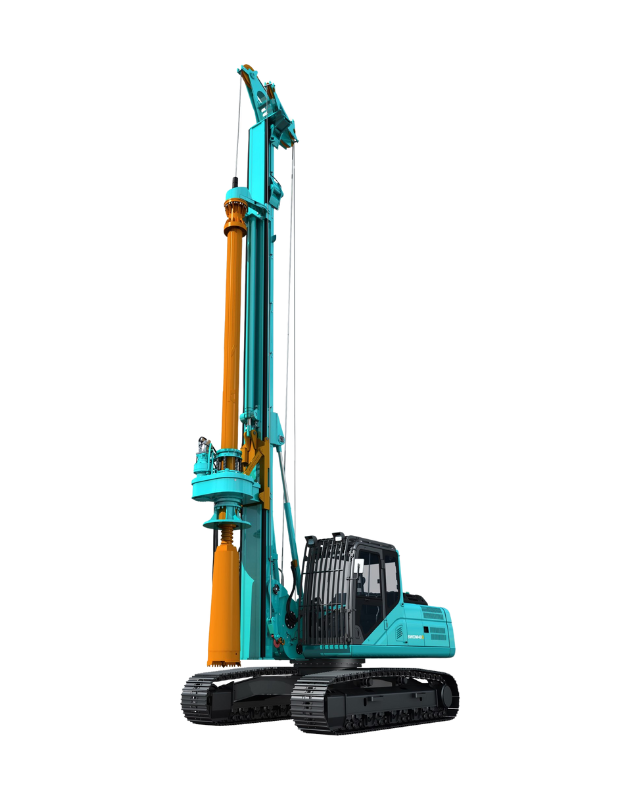

Sunward SWDM300S (106t)
1066t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSB6.7 T3
Rated Power: 186kW@2000rpm
Rotary Head: 800mm Diameter with 168kN Torque
Main Winch: 28mm Rope with 165kN Single Line Pull
Aux Winch: 16mm Rope with 50kN Single Line Pull
-

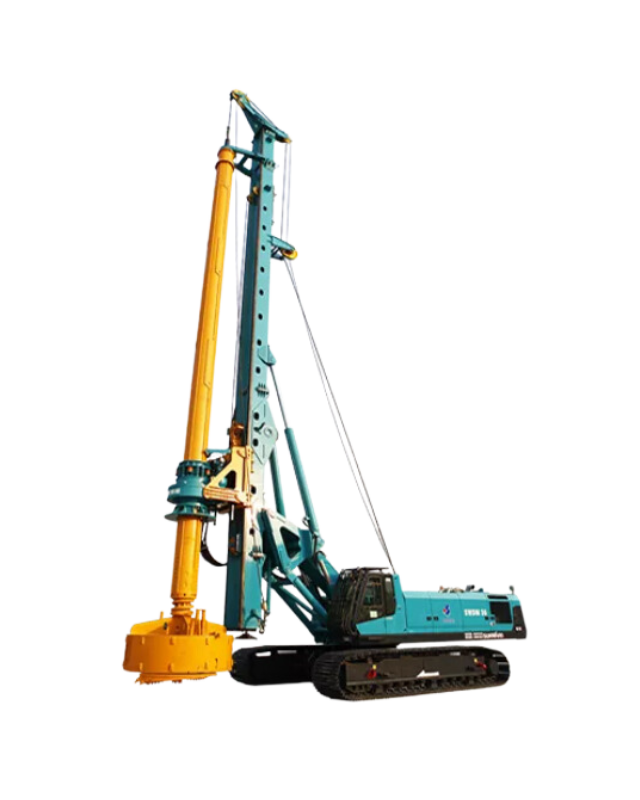

Sunward SWDM360H3 (136t)
46t Kelly & CFA Crowd Winch or Crowd Cylinder
Engine: Cummins QSB6.7 T3
Rated Power: 186kW@2000rpm
Rotary Head: 800mm Diameter with 168kN Torque
Main Winch: 28mm Rope with 165kN Single Line Pull
Aux Winch: 16mm Rope with 50kN Single Line Pull
Sunward Foundation Equipment
Sunward Foundation Equipment is renowned for its exceptional quality, unwavering reliability, and remarkable efficiency in the realm of foundation equipment. With a steadfast commitment to excellence, Sunward has consistently delivered cutting-edge solutions that meet and exceed industry standards. The quality of Sunward's equipment is evident in its robust design, precision engineering, and utilization of high-grade materials. Rigorous testing processes ensure that each piece of equipment undergoes thorough scrutiny, guaranteeing durability and longevity even in the most demanding environments.
