Quality equipment manufactured in France by Pajot since 1910
Air driven hammers between 26 to 5200 kgs
High frequency (1600 to 120 blows per minute according to the model)
Longevity, easy handling, low maintenance and operating costs
Automatic greasing via simple line greaser
Noise-proof covers are available for all impact hammers
Post drivers for wooden and steel fence posts, barriers and light sheet piles
Pajot have been producing air driven piling hammers over 100 years. The company is now being run by the 4th generation of the Pajot family. All of that know-how and expertise has been channelled into developing a simple, but reliable and effective range of piling hammers. From hand held fence post drivers right through to 5200 kgm hammers for driving 1200 mm diameter tubular piles or large sections of double Z sheet pile profiles.
PAJOT TYPE C AIR PILE HAMMER SPECIFICATIONS
-
Approx. No. of blows per minute (1): 240
Approx compressed air flow m3./min. (1): 9
Power in KGM/BLOW (@ 7 bar) (1): 455
Inner diameter of intake pipe (1): 40mm
Metal Sheet Piles (2)
Width: 300mm-600mm
Pile Height: 6m-8m
Square or Round Wooden Piles (2)
Width: 440mm
Pile Height 4m-8m
Reinforced Concrete Piles (2)
Width: 200x200mm
Pile Height 4m-6m
-
Approx. No. of blows per minute (1): 270
Approx compressed air flow m3./min. (1): 11
Power in KGM/BLOW (@ 7 bar) (1): 700
Inner diameter of intake pipe (1): 40mm
Metal Sheet Piles (2)
Width: 300mm-750mm
Pile Height: 6m-11m
Square or round wooden piles (2)
Width: 440mm
Pile Height 4m-9m
Reinforced concrete piles (2)
Width: 200x200mm
Pile Height 4m-7m
-
Approx. No. of blows per minute (1): 140
Approx compressed air flow m3./min. (1): 33
Power in KGM/BLOW (@ 7 bar) (1): 3600
Inner diameter of intake pipe (1): 50mm
Metal Sheet Piles (2)
Width: Pair
Pile Height: 20m
Square or round wooden piles (2)
Width: 1220mm
Pile Height 20m
Reinforced concrete piles (2)
Width: 400x400mm
Pile Height 20m
-
Approx. No. of blows per minute (1): 120
Approx compressed air flow m3./min. (1): 35
Power in KGM/BLOW (@ 7 bar) (1): 5200
Inner diameter of intake pipe (1): 50mm
Metal Sheet Piles (2)
Width: Pair
Pile Height: 30m
Square or round wooden piles (2)
Width: 1220mm
Pile Height 20m
Reinforced concrete piles (2)
Width: 400x400mm
Pile Height 25m
PAJOT CONVENTIONAL AIR PILE DRIVER SPECIFICATIONS
-
Approx. No. of blows per minute (1): 1600
Approx compressed air flow m3./min. (1): 1.5
Power in KGM/BLOW (@ 7 bar) (1): /
Inner diameter of intake pipe (1): 25mm
Approximate outer dimensions (1): 285x180x520mm
Metal Sheet Piles (2)
Width: /
Pile Height: /
Square or round wooden piles (2)
Width: Max 120mm
Pile Height: /
Reinforced concrete piles (2)
Width: /
Pile Height: /
-
Approx. No. of blows per minute (1): 1350
Approx compressed air flow m3./min. (1): 1.8
Power in KGM/BLOW (@ 7 bar) (1): /
Inner diameter of intake pipe (1): 25mm
Approximate outer dimensions (1): 200x615mm
Metal Sheet Piles (2)
Width: /
Pile Height: /
Square or round wooden piles (2)
Width: Max 180mm
Pile Height: /
Reinforced concrete piles (2)
Width: /
Pile Height: /
-
Approx. No. of blows per minute (1): 500
Approx compressed air flow m3./min. (1): 2.2
Power in KGM/BLOW (@ 7 bar) (1): 47
Inner diameter of intake pipe (1): 25mm
Approximate outer dimensions (1): 970x136x136mm
Metal Sheet Piles (2)
Width: 2200x525x525mm
Pile Height: 1-2m
Square or round wooden piles (2)
Width: Max 100x100mm
Pile Height: 2m
Reinforced concrete piles (2)
Width: /
Pile Height: /
-
Approx. No. of blows per minute (1): 450
Approx compressed air flow m3./min. (1): 3
Power in KGM/BLOW (@ 7 bar) (1): 80
Inner diameter of intake pipe (1): 25mm
Approximate outer dimensions (1): 960x160x160mm
Metal Sheet Piles (2)
Width: 200–400mm
Pile Height: 1-2m
Square or round wooden piles (2)
Width: Max 100x100mm
Pile Height: 2m
Reinforced concrete piles (2)
Width: /
Pile Height: /
-
Approx. No. of blows per minute (1): 420
Approx compressed air flow m3./min. (1): 3.5
Power in KGM/BLOW (@ 7 bar) (1): 110
Inner diameter of intake pipe (1): 25mm
Approximate outer dimensions (1): 1250x175x175mm
Metal Sheet Piles (2)
Width: 200–400mm
Pile Height: 2-3m
Square or round wooden piles (2)
Width: Max 100x200mm Planks
Pile Height: 2-3m
Reinforced concrete piles (2)
Width: /
Pile Height: /
-
Approx. No. of blows per minute (1): 300
Approx compressed air flow m3./min. (1): 7
Power in KGM/BLOW (@ 7 bar) (1): 214
Inner diameter of intake pipe (1): 40mm
Approximate outer dimensions (1): 1300x270x270mm
Metal Sheet Piles (2)
Width: 300–400mm
Pile Height: 3-5m
Square or round wooden piles (2)
Width: Max 100x300mm
Pile Height: 3-5m
Reinforced concrete piles (2)
Width: 150x150mm
Pile Height: 2-3m
-
Approx. No. of blows per minute (1): 240
Approx compressed air flow m3./min. (1): 11
Power in KGM/BLOW (@ 7 bar) (1): 615
Inner diameter of intake pipe (1): 40mm
Approximate outer dimensions (1): 1600x390x390mm
Metal Sheet Piles (2)
Width: 300–400mm
Pile Height: 6-11m
Square or round wooden piles (2)
Width: Max 250-300mm
Pile Height: 6-9m
Reinforced concrete piles (2)
Width: 200x200mm
Pile Height: 5-7m
-
Approx. No. of blows per minute (1): 190
Approx compressed air flow m3./min. (1): 20
Power in KGM/BLOW (@ 7 bar) (1): 1420
Inner diameter of intake pipe (1): 50mm
Approximate outer dimensions (1): 1900x500x500mm
Metal Sheet Piles (2)
Width: Widest or 2 at a time
Pile Height: 11-15m
Square or round wooden piles (2)
Width: Max 350mm
Pile Height: 10-15m
Reinforced concrete piles (2)
Width: 300x300mm
Pile Height: 8-12m
-
Approx. No. of blows per minute (1): 160
Approx compressed air flow m3./min. (1): 30
Power in KGM/BLOW (@ 7 bar) (1): 2334
Inner diameter of intake pipe (1): 50mm
Approximate outer dimensions (1): 2200x525x525mm
Metal Sheet Piles (2)
Width: Widest or 2 at a time
Pile Height: 15-18m
Square or round wooden piles (2)
Width: Max 400mm
Pile Height: 15-18m
Reinforced concrete piles (2)
Width: 350x350mm
Pile Height: 12-16m

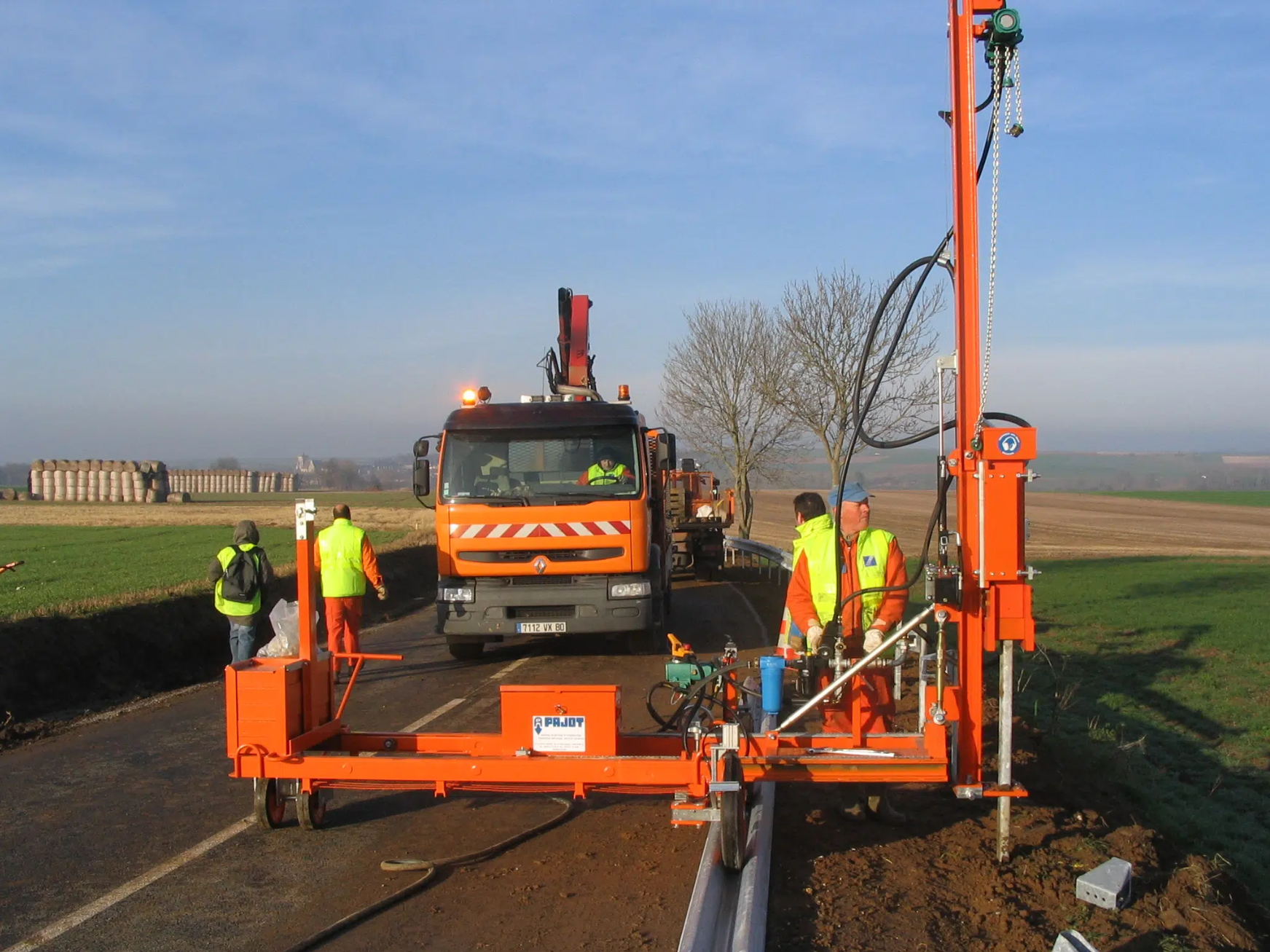

PAJOT GUARD RAIL POST PILE DRIVER
-
The PAJOT guardrail post pile drivers are ideal for guard rail post installations and offer a robust and durable solution with low operating costs. The machines are compact (folding mast) and lightweight making them easy to transport to the site. They can be fitted with a PAJOT 115, 160 or 300 kg impact hammer and only require a 2200 to 3500 litre compressor pulled by the pile driver to power them.
Robust and durable solution delivering low operating costs. This machine is compact (folding mast) and lightweight making it easy to transport to the site.
Advantages of the PAJOT SPR108 pneumatic guardrail post pile driver:
Verticality adjustment in all 3 dimensions
Articulated mast with gas jack system for effortless single person raising.
Steerable wheels: 2 positions (movement and operation) mounted on shaft bearings, specially designed tires to roll effortlessly in slideways, including type A
Pneumatic equipment comprising: air exhaust pipe, line greaser with receiver, 1 outlet for connecting tools
Compressed air lifting tackle with 500 kg lifting force with progressive pneumatic remote control and emergency stop within reach of the driver
1 translational movement motor with progressive pneumatic remote control and motor lock in both directions
1 spirit level
1 tool chest
1 handbrake on the free wheel
SPR 108 PAJOT pile driver characteristics:
Total weight excluding hammer, including 8 counterweights: 850 kg
Removable counterweights: 57 kg x 8. 456 kg plates
Maximum working height under hammer: 300. 2350 mm
Chassis offset: 1150 mm
Mast inclination: forward, back and side-to-side
Designed for: 115, 160, 270 and 300 kg impact hammers

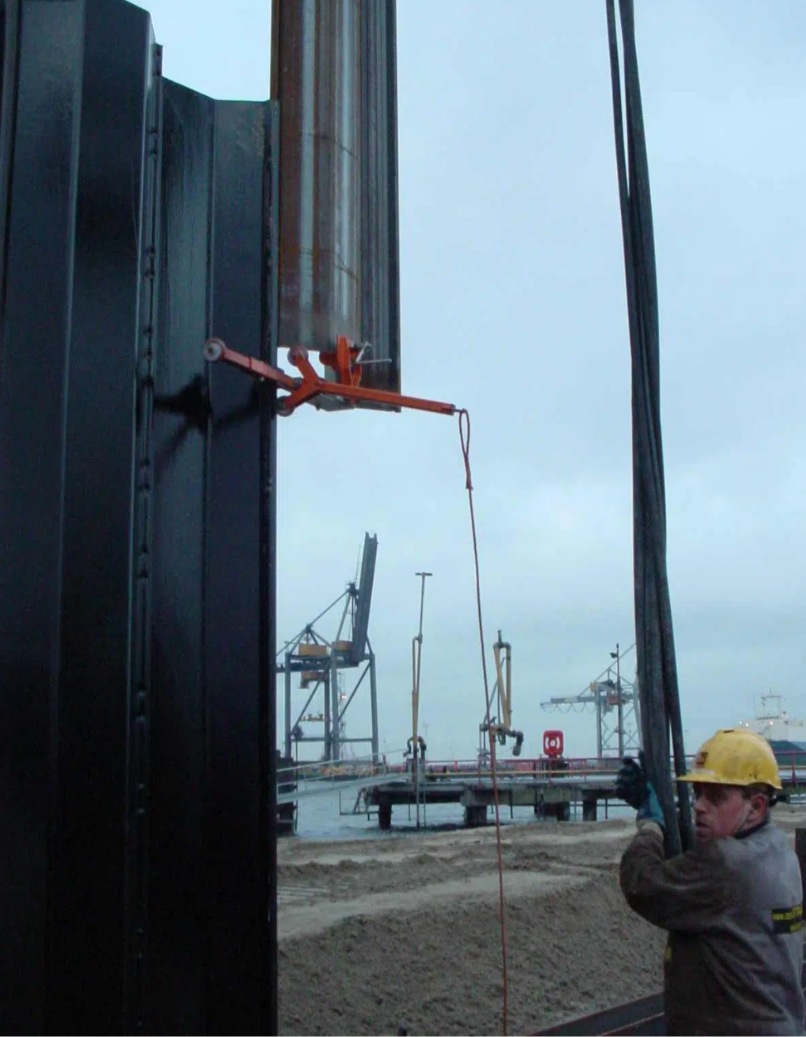

PAJOT SHEET PILE THREADER
-
The PAJOT threader is easy to use and makes light work of threading single AU and PU piles or pairs thereof as part of a curtain wall. It eliminates the need for a top man several meters from the ground or having to use the rope system. The threading operation is performed by simply pulling on a rope and the machine can be adapted to any profile by changing a single part.

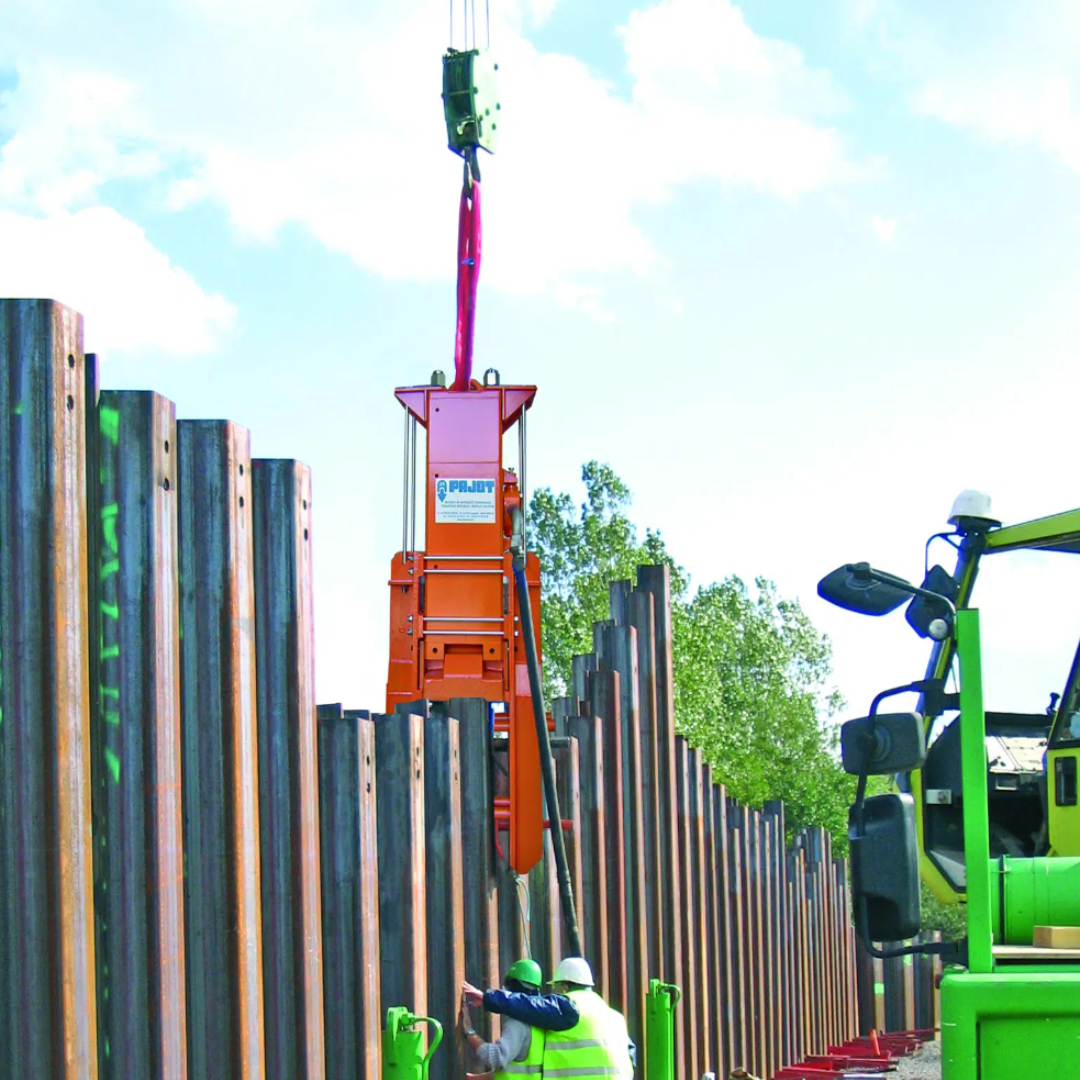

Conventional Pile Driver
Type C Impact Hammer
Pajot Threader
